In the world of TFT LCD modules, especially those with integrated touch functionality, one design detail often overlooked—but critical—is how the touch panel and LCD are bonded.
Two major bonding technologies dominate the market:
If you’re developing an embedded solution, industrial controller, or a medical device with a display, choosing the right bonding method can determine the visual quality, durability, and environmental tolerance of your product.
At FlyLucky, we help OEMs and system integrators make the right choice by offering both bonding options. This article compares the two methods and guides you to select the best fit for your application.
| Feature | Full Lamination (Optical Bonding) | Air Gap Bonding |
|---|---|---|
| 💡 Display Clarity | Higher contrast, reduced reflection | More glare, less sunlight readability |
| 🛠️ Structural Integrity | Stronger adhesion, shock-resistant | Weaker, can delaminate under stress |
| 🧽 Dust & Moisture Resistance | Sealed, IP-rated possibilities | Air pocket can allow ingress |
| 🧾 Cost | Higher (due to process complexity) | Lower, suitable for mass-market devices |
| 🔄 Repairability | Harder to rework or replace | Easier replacement in some cases |
| 🌞 Outdoor Visibility | Excellent, supports 1000+ nits LCDs | Poor in direct sunlight |
| 💻 Touch Accuracy | Better due to no air between layers | Slight parallax effect |

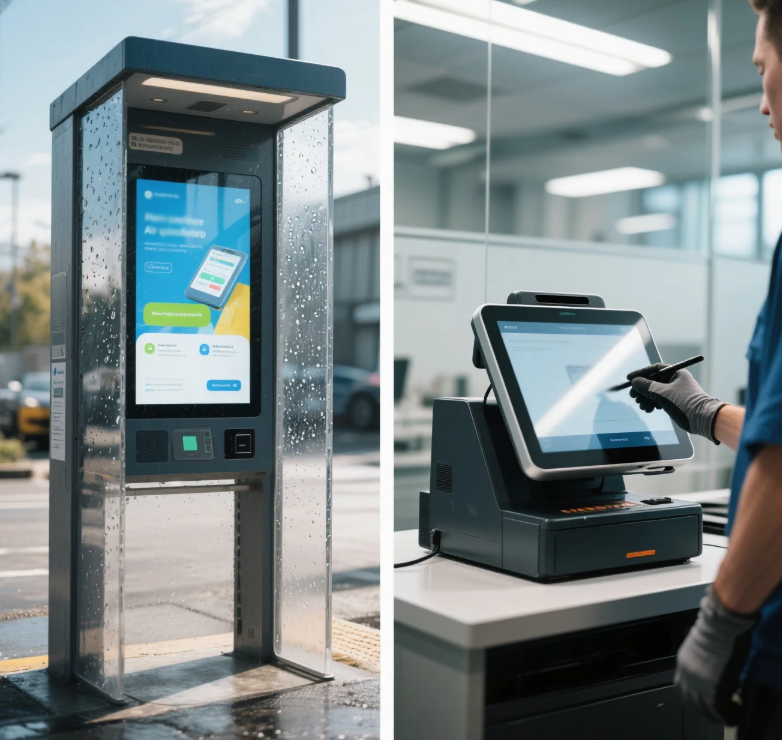

| 📐 Typical Use | Rugged tablets, kiosks, automotive, military | POS, home appliances, cost-sensitive UI |
This process uses a transparent adhesive (like OCR or OCA) to glue the cover glass/touch panel directly to the TFT LCD module, eliminating the air between them.
Benefits:
Here, the cover glass or touch panel is attached via frame or tape with a small air layer between it and the LCD.
Benefits:
Our full lamination is done in dust-free environments, ensuring no bubbles or particles between layers.
Depending on your application, we use UV-cured OCA, liquid OCR, or double-sided bonding to maximize strength and clarity.
We support various glass thicknesses, 3D curved glass, and capacitive/resistive touch laminated options.
Not all projects require optical bonding—we help you balance performance vs budget by offering hybrid bonding solutions.
1️⃣ Determine Use Environment
Outdoor, dusty, or rugged? Choose full lamination.
Indoor, clean, cost-sensitive? Air gap may suffice.
2️⃣ Consider Brightness Needs
800+ nits require optical bonding for full sunlight readability.
3️⃣ Think Long-Term Maintenance
Need easier touch panel replacement? Air gap may help.
Need durability and no refraction? Optical bonding wins.
4️⃣ Ask for Custom Samples
FlyLucky offers bonding sample kits with various techniques.
Q: Is optical bonding necessary for a 5-inch 800-nits screen?
A: If used outdoors or in a bright industrial setting—yes. Air gap will result in reflection and contrast loss.
Q: Can I request semi-laminated or partial bonding?
A: Yes, we support hybrid bonding configurations for balance between clarity and cost.
Q: Will full lamination delay production time?
A: Slightly, due to curing and QC steps—but FlyLucky’s process is optimized for mass delivery within 3–4 weeks.
FlyLucky – Clarity You Can Trust, Bonding You Can Rely On
Whether you’re building a rugged control terminal or a sleek smart appliance, FlyLucky’s TFT LCD modules come bonded the way you need—optically for clarity or air-gapped for cost-efficiency. Let us help you optimize your UI and product performance from the inside out.
