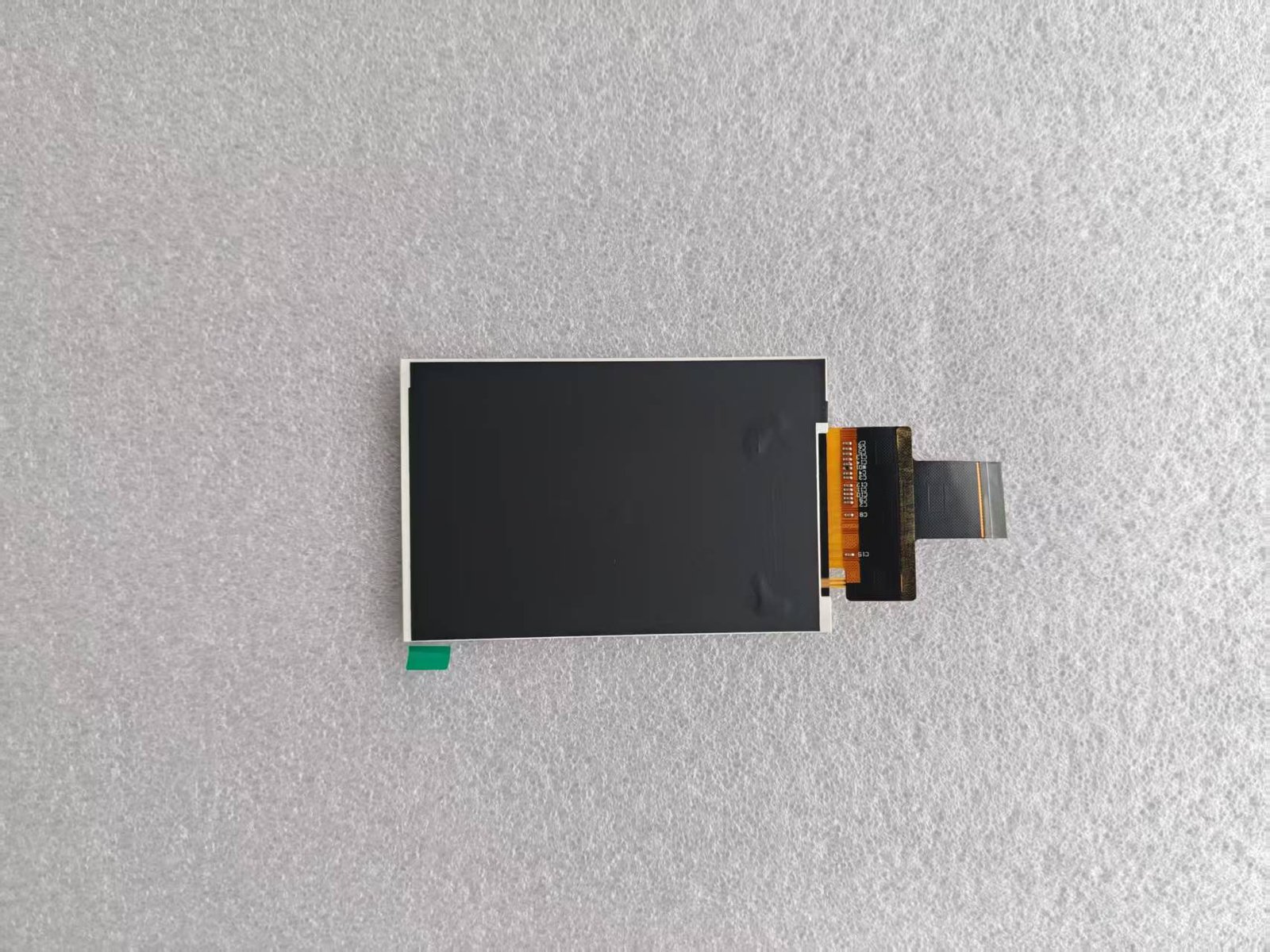

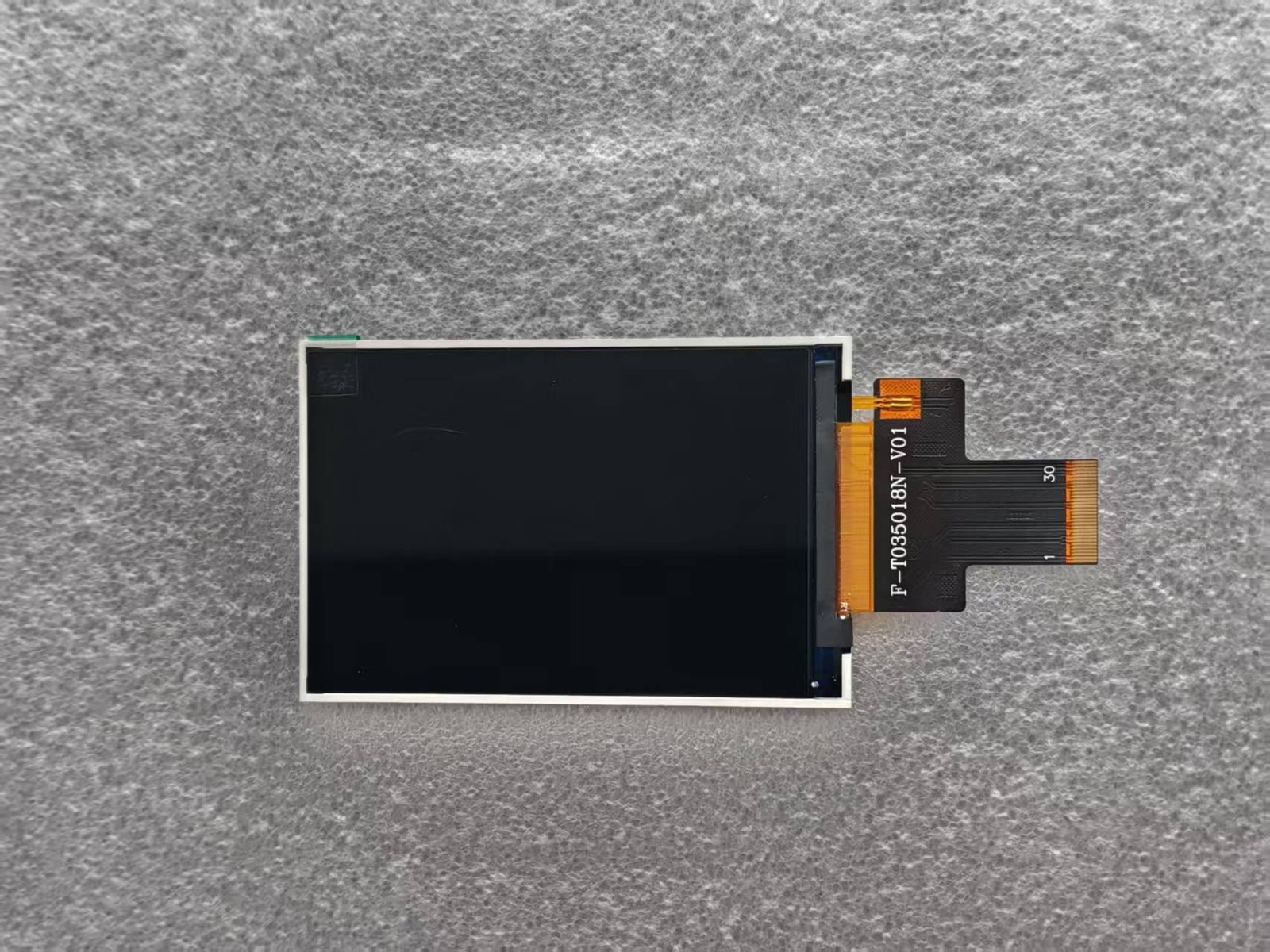

The 3.5-inch TFT LCD module is designed to deliver vibrant display performance for compact embedded systems, handheld devices, and industrial control panels. With support for multiple interface types including SPI, MCU, and MIPI, this versatile module offers exceptional compatibility and ease of integration. Its compact form factor, 320×480 resolution, and wide viewing angles ensure clear and crisp visuals in a variety of lighting conditions. Whether used in portable testers or outdoor controllers, this module excels in reliability, brightness, and energy efficiency.
| Display Size | 3.5 inch |
|---|---|
| Active Area | 48.96 × 73.44 mm |
| Resolution | 320 × 480 |
| Outline Dimension | 55.0 × 82.94 × 2.15 mm |
| Viewing Direction | All viewing angles |
| Driver IC | ST7796U |
| Driving Voltage | 2.8V |
| Interface Types | SPI / MCU / MIPI |
| Backlight | 8 white LEDs, brightness up to 360 cd/m² |
| Operating Temperature | -20~70°C |
| Storage Temperature | 30~80°C |
