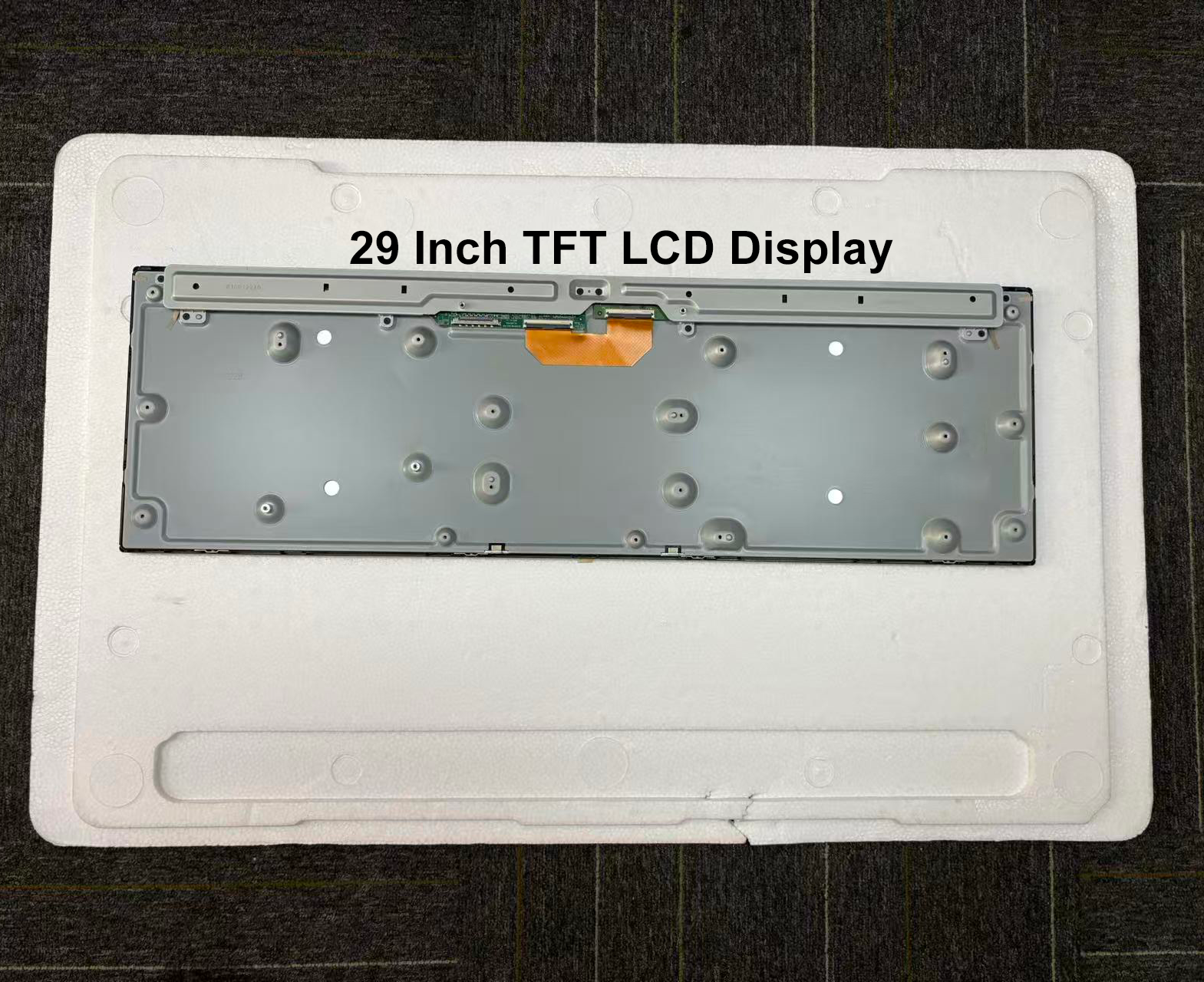

The 29 inch bar LCD display DV290FBM-N10 from BOE is an ultra-wide TFT-LCD module designed for professional and industrial applications. With a native 1920×540 resolution, high brightness of 700 cd/m², and HADS normally-black mode, it delivers excellent readability, contrast, and stability in demanding environments.

This 29 inch bar LCD display is ideal for systems requiring a panoramic layout while maintaining high image quality and long-term reliability.

Key Features

• Ultra-wide 29 inch bar LCD display with native strip format

• High brightness 700 cd/m² for clear visibility

• 1200:1 contrast ratio for sharp image performance

• Full viewing angle 89/89/89/89 (CR≥10)

• Fast response time 15 ms (G to G)

• Long lifetime WLED backlight (50,000 hours)

• Industrial-grade temperature reliability

Display Specifications

• Panel Brand: BOE

• Model: DV290FBM-N10

• Panel Type: a-Si TFT-LCD, LCM

• Diagonal Size: 29.0 inch (native bar display)

• Resolution: 1920 (RGB) × 540, 69 PPI

• Pixel Layout: RGB vertical stripe

• Display Mode: HADS, Normally Black, Transmissive

• Colors: 16.7M, 72% NTSC

• Brightness: 700 cd/m² (Typ.)

• Contrast Ratio: 1200:1 (Typ.)

• Response Time: 15 ms (G to G)

• Refresh Rate: 60 Hz

Mechanical & Optical Information

• Active Area: 705.6 × 198.45 mm

• Viewing Area: 709.6 × 202.45 mm

• Outline Dimension: 720.8 × 226.25 × 21.6 mm

• Surface Treatment: Anti-glare (Haze 25%), Hard coating (3H)

• Weight: Approx. 2.15 kg

Interface & Power

• Signal Interface: LVDS (2 ch, 8-bit), 51-pin connector

• Power Supply: 12.0V (Typ.)

• Touch Function: Without touch

Environmental Conditions

• Operating Temperature: 0 ~ 50 °C

• Storage Temperature: –20 ~ 60 °C

Typical Applications

This 29 inch bar LCD display is widely used in:

• Industrial control panels

• Transportation & rail information systems

• Commercial advertising displays

• Smart retail shelving systems

• Monitoring and status display terminals
