📺 Product Overview

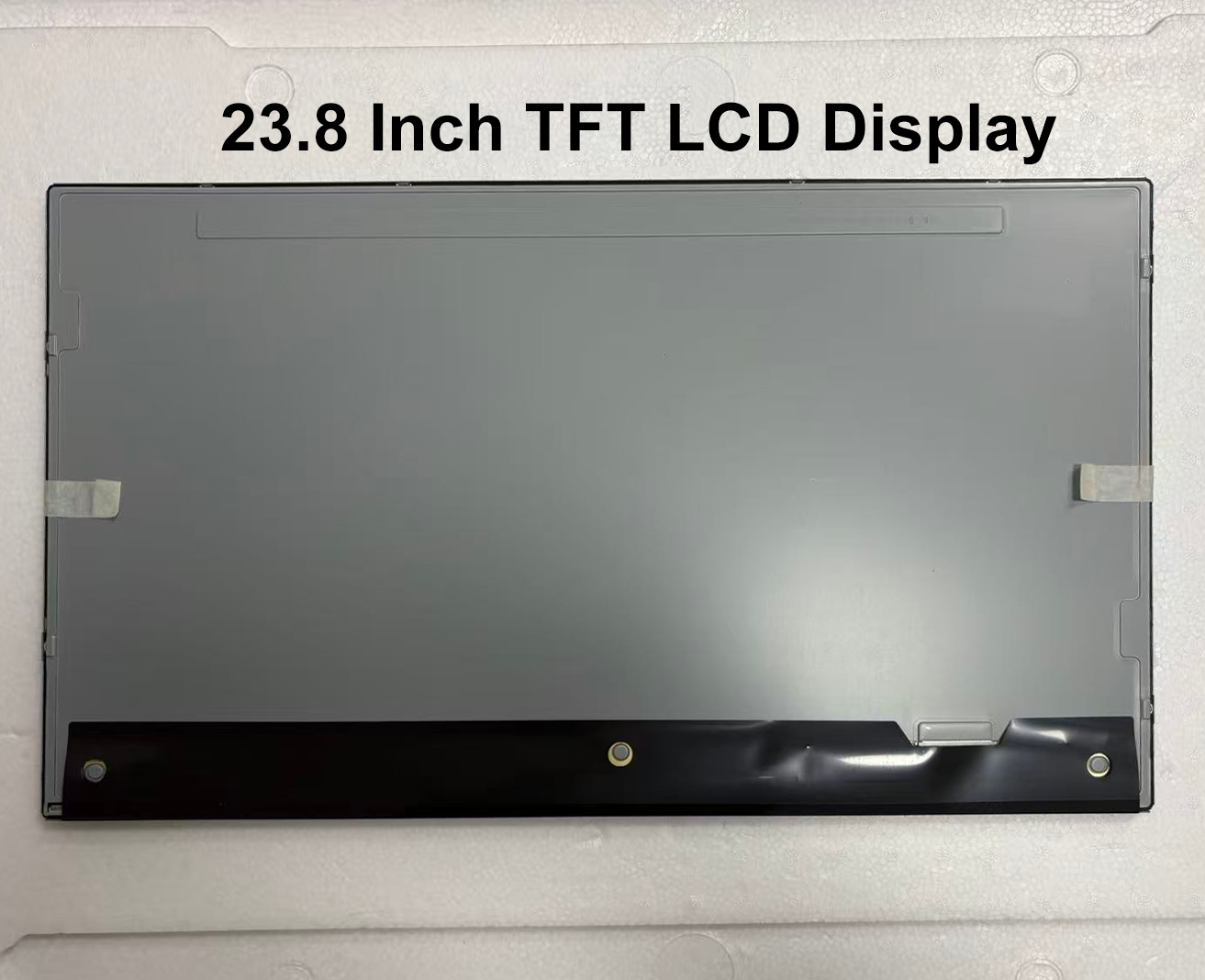

The 23.8 inch FHD LCD display (BOE DV238FHM-N11) is a high-performance industrial TFT-LCD module designed for applications that demand high brightness, accurate color reproduction, and stable long-term operation.

With 1920×1080 Full HD resolution, HADS normally black mode, and 99% sRGB color coverage, this display delivers sharp visuals and consistent readability from any viewing angle.

🔍 Key Specifications

• Display Size: 23.8 inch

• Resolution: 1920 × 1080 (Full HD, 92 PPI)

• Panel Type: a-Si TFT-LCD, LCM

• Display Mode: HADS, Normally Black, Transmissive

• Brightness: 550 cd/m² (Typ.)

• Contrast Ratio: 1000:1 (Typ.)

• Viewing Angle: 89°/89°/89°/89° (CR≥10)

• Color Support: 16.7M colors, 99% sRGB

• Response Time: 14 ms (G to G)

• Surface Treatment: Anti-glare, Hard Coating (3H)

🔌 Electrical & Interface

• Interface Type: LVDS (2 channel, 8-bit), 30-pin connector

• Power Supply: 5.0V (Typ.)

• Frame Rate: 60 Hz

• Touch Panel: Without touch (custom touch solutions optional)

📐 Mechanical Dimensions

• Active Area: 527.04 × 296.46 mm

• Bezel Opening: 530.2 × 299.6 mm

• Outline Dimensions: 543 × 317.4 × 11.4 mm

• Weight: 2.39 kg (Typ.)

🌡 Reliability & Lifetime

• Backlight Type: WLED (4 strings), 30,000 hours (Typ.)

• Operating Temperature: 0 ~ 50 °C

• Storage Temperature: -20 ~ 60 °C

Designed for continuous operation, this 23.8 inch FHD LCD display is suitable for professional environments where stability and durability matter.

🏭 Typical Applications

• Industrial control panels

• Commercial display systems

• Medical and diagnostic equipment

• Self-service terminals

• Embedded HMI solutions

• Professional monitoring systems

🔧 Customization Support

We support customization for:

• Brightness optimization

• Mechanical structure & FPC design

• Touch panel integration

• Interface adaptation for embedded systems
