📐 Industrial-Grade 22 Inch TFT LCD Display for Professional Systems

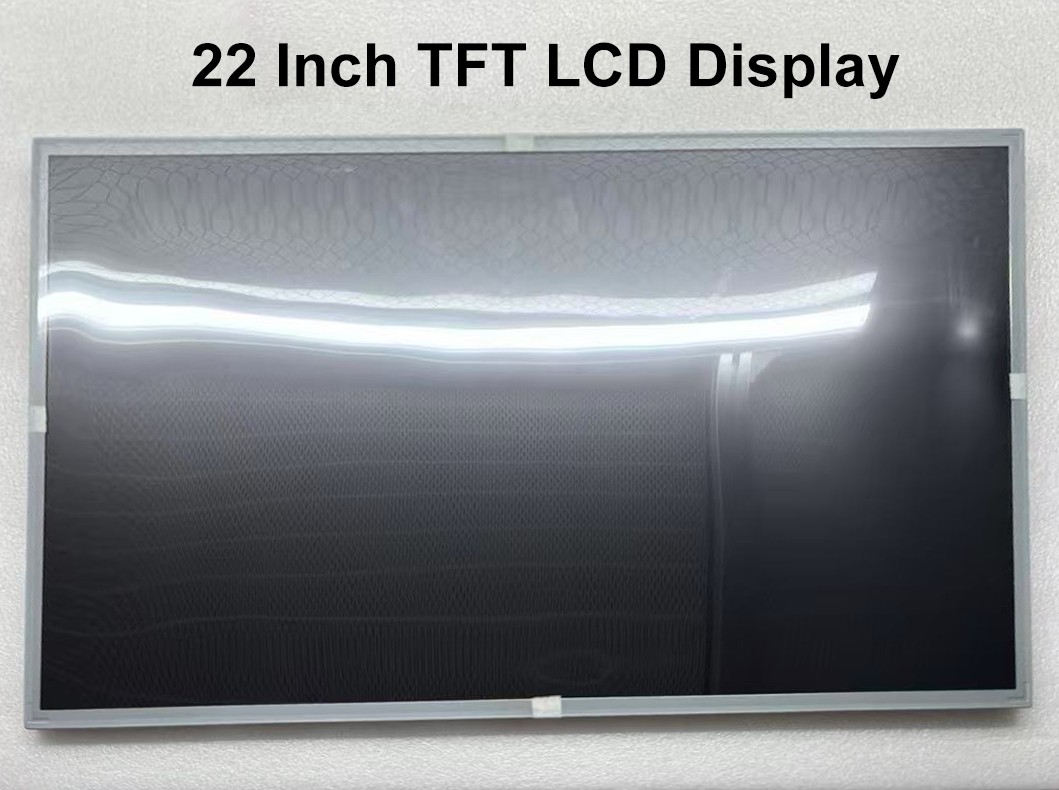

The 22 inch TFT LCD display EV220WPM-N10 from BOE is a reliable industrial-grade panel designed for applications that require stable image quality, wide viewing angles, and long service life.

With a 1680×1050 (WSXGA+) resolution, this display offers a balanced combination of clarity and efficiency, making it ideal for control panels, industrial HMIs, medical equipment, and commercial terminals.

🔍 Key Display Features

✔ High-Resolution WSXGA+ Panel

• Resolution: 1680 (RGB) × 1050

• Pixel Density: 90 PPI

• Provides sharp text, clear graphics, and comfortable long-term viewing

✔ Wide Viewing Angle & Color Stability

• Viewing Angle: 89° / 89° / 89° / 89° (CR ≥10)

• Operating Mode: HADS, Normally Black, Transmissive

• Maintains consistent contrast and color from all directions

✔ Industrial Brightness & Contrast

• Brightness: 350 cd/m² (Typ.)

• Contrast Ratio: 1000:1 (Typ.)

• Antiglare surface (Haze 25%) improves readability under ambient light

⚙️ Electrical & Mechanical Reliability

• Interface Type: LVDS (2 channel, 8-bit), 30-pin connector

• Power Supply: 5.0V (Typ.)

• Frame Rate: 60Hz

• Pixel Format: RGB Vertical Stripe

Designed for stable signal transmission and long-term continuous operation in industrial environments.

🌡️ Long-Life Backlight & Environment Endurance

• Backlight: WLED with LED Driver

• Backlight Lifetime: 30,000 hours

• Operating Temperature: 0 ~ 60°C

• Storage Temperature: -20 ~ 60°C

This 22 inch TFT LCD display is built for 24/7 industrial usage with consistent performance over time.

🧩 Mechanical Dimensions

• Active Area: 473.76 × 296.10 mm

• Bezel Opening: 477.7 × 300.1 mm

• Outline Dimensions: 493.7 × 320.1 × 16.35 mm

Optimized for industrial enclosures, embedded systems, and panel mounting designs.

🏭 Typical Applications

• Industrial HMI & control panels

• Medical equipment interfaces

• Automation systems

• Commercial terminals

• Test & measurement instruments

• Industrial PCs and workstations

🔧 Customization & Engineering Support

At Future Display, we support:

• ✔ Touch panel integration (PCAP / Resistive)

• ✔ Custom FPC & mechanical adaptation

• ✔ Interface and brightness customization

• ✔ Small-batch prototyping → stable mass production
