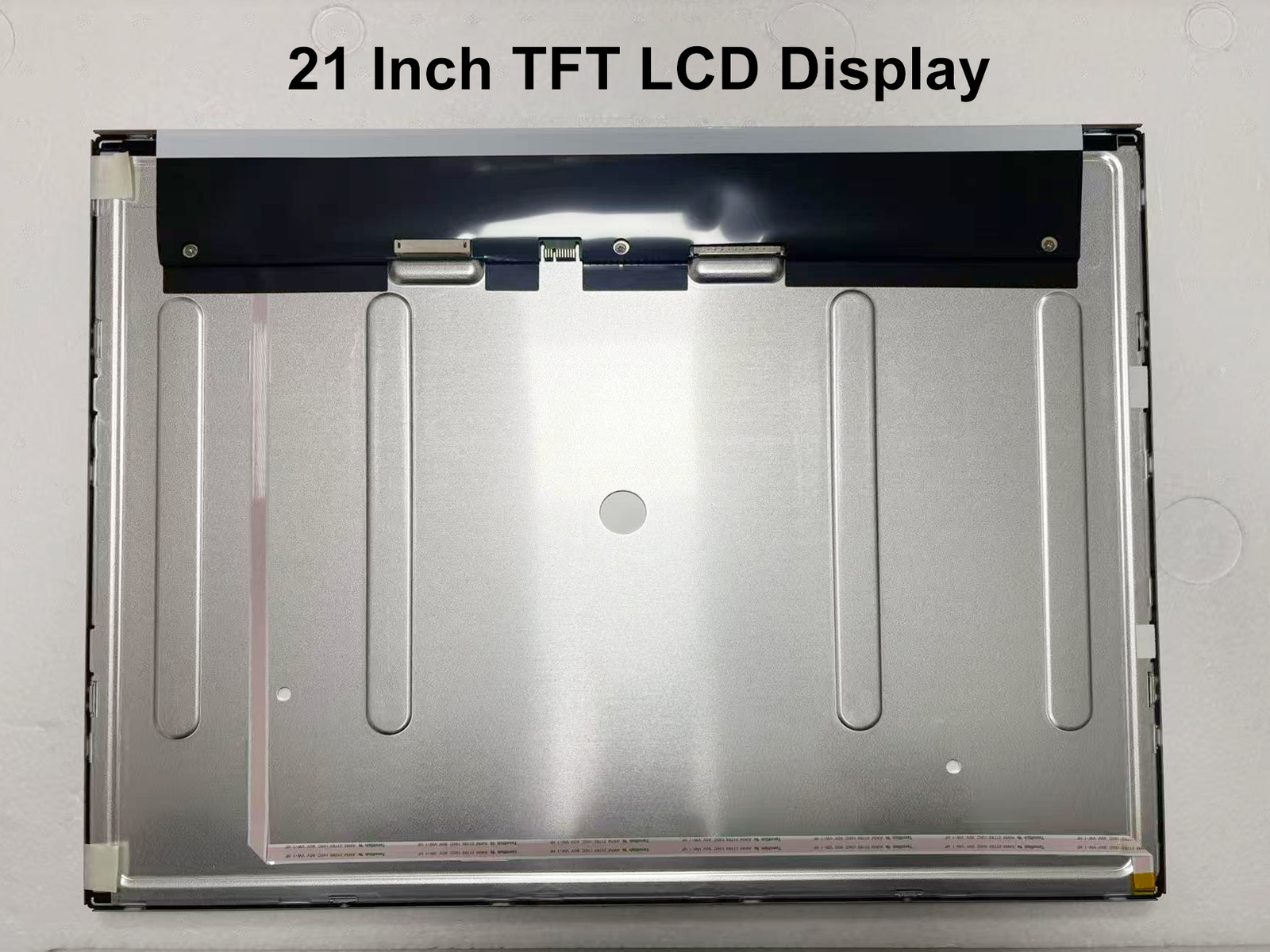

📐 21.5 Inch Industrial TFT LCD Display for Demanding Environments

The 21.5 inch industrial TFT LCD display (Model: GV215FHM-N10) from BOE is a Full HD (1920×1080) ADS panel engineered for long-term stability, wide temperature operation, and reliable performance in industrial and professional systems.

With its wide viewing angle, high brightness, and robust surface treatment, this display is well-suited for applications that require clear visibility, durability, and consistent image quality.

🔍 Key Display Specifications

✔ Full HD Resolution & Wide Screen Size

• Diagonal Size: 21.5 inch

• Resolution: 1920 (RGB) × 1080 (FHD)

• Pixel Density: 102 PPI

• Active Area: 476.64 × 268.11 mm

Provides sharp, detailed visuals for complex interfaces and data-rich displays.

✔ High Brightness & Excellent Contrast

• Brightness: 450 cd/m² (Typ.)

• Contrast Ratio: 1000:1 (Typ.)

Ensures clear readability under various lighting conditions.

🌈 Viewing Performance

• Panel Type: a-Si TFT-LCD, LCM

• Optical Mode: ADS, Normally Black, Transmissive

• Viewing Angle: 89° / 89° / 89° / 89° (CR ≥10)

• Recommended View Direction: All Viewing Angle

• Display Colors: 16.7M

Delivers consistent color and contrast from any direction.

⚡ Fast Response & Smooth Operation

• Response Time: 14 ms (G to G, Typ.)

• Refresh Rate: 60 Hz

Suitable for dynamic industrial UIs and real-time monitoring systems.

⚙️ Electrical & Interface

• Signal Interface: LVDS (2 channel, 8-bit)

• Connector: 30 pins

• Input Voltage: 5.0V (Typ.)

Widely compatible with industrial control boards and embedded systems.

🧩 Mechanical & Surface Design

• Outline Dimensions: 485.6 × 292.2 × 11.2 mm

• Viewing Area: 479.8 × 271.3 mm

• Weight: 1.93 kg (Typ.)

• Surface Treatment: Antiglare (Haze 25%), Hard Coating (3H)

Designed for durability and reduced reflection in industrial environments.

🌡️ Wide Temperature & Long Lifetime

• Operating Temperature: -20 ~ 70°C

• Storage Temperature: -30 ~ 80°C

• Backlight Type: WLED (without driver)

• Backlight Lifetime: 50,000 hours

Reliable for long-term, continuous operation in harsh environments.

🏭 Typical Applications

• Industrial control panels

• Medical equipment displays

• Automation systems

• Machine interfaces

• Test & measurement instruments

• Professional embedded systems

🔧 Customization Support

We support:

✔ Brightness & optical tuning
✔ Mechanical & structure customization
✔ Interface adaptation
✔ Small-batch prototyping → stable mass production
