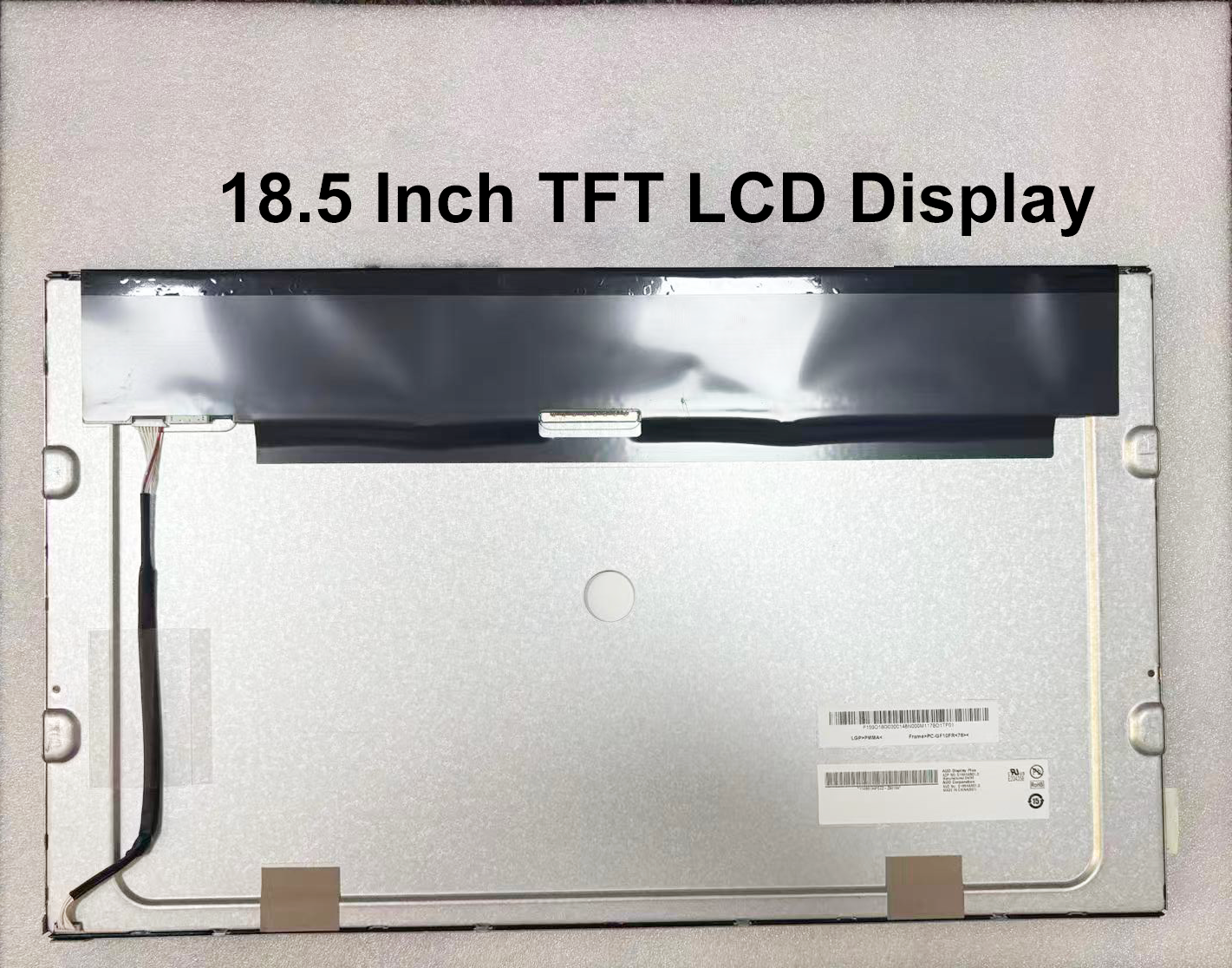

📌 18.5 Inch Industrial TFT LCD Display for Professional Applications

The 18.5 inch industrial TFT LCD display (Model: GV185FHM-N10-3M30) is a BOE Full HD ADS panel designed for long-term reliability in industrial and professional environments.

With high contrast, wide viewing angle, and ultra-wide temperature operation, this display is ideal for systems requiring stable performance, clear visibility, and durable construction.

🔍 Key Display Specifications

✔ Full HD Resolution & Compact Size

• Diagonal Size: 18.5 inch

• Resolution: 1920 (RGB) × 1080 (FHD)

• Pixel Density: 119 PPI

• Active Area: 408.96 × 230.04 mm

Delivers sharp image quality for data-rich interfaces and control systems.

✔ Brightness & High Contrast Performance

• Brightness: 350 cd/m² (Typ.)

• Contrast Ratio: 1200:1 (Typ.)

Ensures excellent readability and image depth in indoor and semi-industrial environments.

👁️ Wide Viewing Angle & Color Performance

• Panel Type: a-Si TFT-LCD, LCM

• Optical Mode: ADS, Normally Black, Transmissive

• Viewing Angle: 85° / 85° / 85° / 85° (CR ≥10)

• Viewing Direction: All View Direction

• Display Colors: 16.7M, 70% NTSC

Provides consistent color reproduction and contrast from multiple viewing positions.

⚡ Electrical & Interface

• Signal Interface: LVDS (2 channel, 8-bit)

• Connector: 30 pins

• Input Voltage: 5.0V (Typ.)

Fully compatible with industrial mainboards and embedded platforms.

🧩 Mechanical & Surface Design

• Outline Dimensions: 430.4 × 254.6 × 12.5 mm

• Viewing Area: 410.96 × 232.04 mm

• Weight: 1.80 kg (Typ.)

• Surface Treatment: Antiglare (Haze 25%), Hard Coating (3H)

Designed for durability, scratch resistance, and reduced reflection.

⏱️ Response & Refresh Performance

• Response Time: 30 ms (Typ., Tr + Td)

• Refresh Rate: 60 Hz

Suitable for standard industrial UI and monitoring applications.

🌡️ Wide Temperature & Long Lifetime

• Operating Temperature: -30 ~ 80°C

• Storage Temperature: -30 ~ 80°C

• Backlight Type: 11S4P WLED (With LED Driver)

Built for continuous operation in harsh industrial environments.

🏭 Typical Applications

• Industrial control panels

• Medical diagnostic equipment

• Automation systems

• Test & measurement devices

• Professional embedded displays

• Equipment HMI interfaces

🛠 Customization Support

We support:

✔ Optical customization (brightness, polarizer)
✔ Mechanical & structural customization
✔ Interface adaptation
✔ Low MOQ prototyping & mass production
