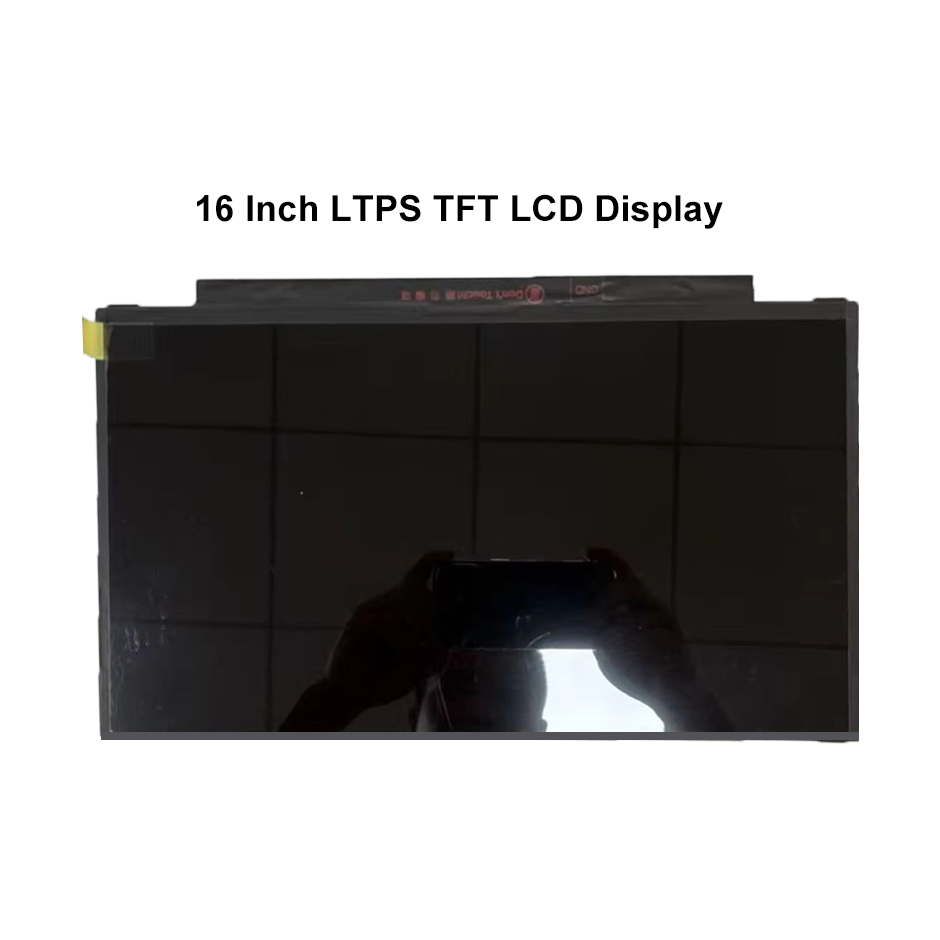

16 Inch LTPS TFT LCD Display — Built for High-Performance Visual Systems

This 16 inch LTPS TFT LCD is engineered for demanding applications that require ultra-high resolution, fast response, and excellent color performance.

With a 2560×1600 (WQXGA) resolution and 188 PPI, it delivers crisp images and sharp text, making it ideal for professional displays, gaming devices, industrial terminals, and premium embedded systems.

Powered by LTPS TFT technology, the panel achieves higher pixel density, improved stability, and lower power consumption compared to conventional TFT displays.

Key Performance Highlights

• High Brightness (600 nits min.)
  Ensures excellent readability in bright indoor environments and controlled industrial settings.

• 165Hz High Refresh Rate
  Ultra-smooth motion performance for gaming displays, simulation systems, and real-time visual interfaces.

• Mini LED Backlight
  Delivers improved contrast uniformity and enhanced brightness control for a premium visual experience.

• Wide Viewing Angle (89°/89°/89°/89°)
  Consistent image quality from almost any direction.

• Wide Color Gamut (96% DCI-P3)
  Rich, accurate colors suitable for content creation, visualization, and advanced UI design.

• Slim Profile Design (≤3.0 mm)
  Ideal for modern, compact product designs with space constraints.

Designed for Professional & Industrial Use

This 16 inch LTPS TFT LCD supports eDP 1.4 (4 lanes) with HBR3 bandwidth, ensuring stable high-speed signal transmission. Its robust operating temperature range (0~50°C) makes it suitable for long-term, reliable operation in professional environments.

Typical applications include:

• Gaming monitors & handheld consoles

• Industrial HMI & control panels

• Medical & professional equipment

• Embedded computing systems

• High-end commercial displays
