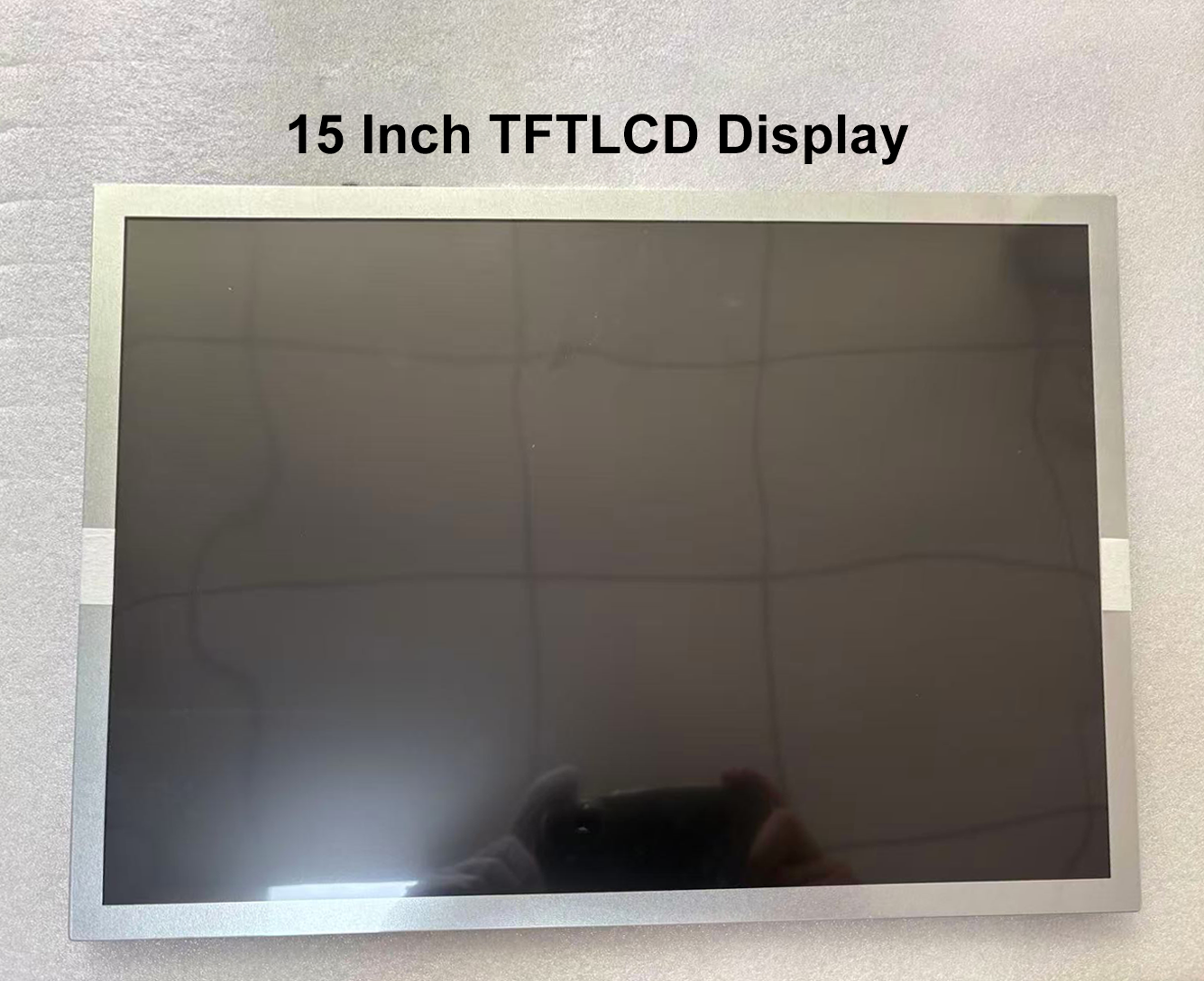

15 Inch TFT LCD Display – Reliable BOE Industrial Panel

This 15 inch TFT LCD display is built with a BOE a-Si TFT-LCD panel, delivering XGA 1024×768 resolution and stable visual performance for industrial and professional equipment.

Featuring an ADS (Advanced Display System), normally black, transmissive mode, the display offers wide 89° viewing angles in all directions, ensuring consistent image quality from different installation positions. With 350 cd/m² typical brightness and an anti-glare surface (Haze 25%) with 3H hard coating, the panel maintains clear visibility while reducing reflections and improving surface durability.

The module adopts an LVDS (1-channel, 8-bit, 20-pin) interface, allowing easy integration with industrial control boards, embedded systems, and HMI platforms. A WLED backlight (12S4P) rated for 50,000 hours ensures long service life and reduced maintenance costs.

Designed for harsh environments, this 15 inch TFT LCD display supports an operating temperature range of –20°C to +70°C, making it suitable for continuous operation in industrial, medical, and automation applications.

Key Features

• 15 inch TFT LCD display with XGA 1024×768 resolution

• BOE original a-Si TFT-LCD panel

• ADS, normally black, transmissive display mode

• 350 cd/m² typical brightness

• Wide viewing angle: 89°/89°/89°/89° (CR≥10)

• Anti-glare surface (Haze 25%) + 3H hard coating

• LVDS interface (1 ch, 8-bit, 20 pins)

• Long-life WLED backlight (50,000 hours)

• Industrial operating temperature: –20°C to +70°C

Typical Applications

• Industrial control panels

• HMI and automation systems

• Medical equipment displays

• Laboratory instruments

• Test & measurement devices

• Industrial embedded terminals

Mechanical & Electrical Specifications

• Diagonal Size: 15.0 inch

• Active Area: 304.128 × 228.096 mm

• Outline Size: 326.5(W) × 253.5(H) × 10(D) mm

• Resolution: 1024(RGB) × 768

• Brightness: 350 cd/m² (Typ.)

• Contrast Ratio: 1000:1 (Typ.)

• Interface: LVDS (1 ch, 8-bit), 20 pins

• Input Voltage: 3.3V (Typ.)

• Weight: 930 g
