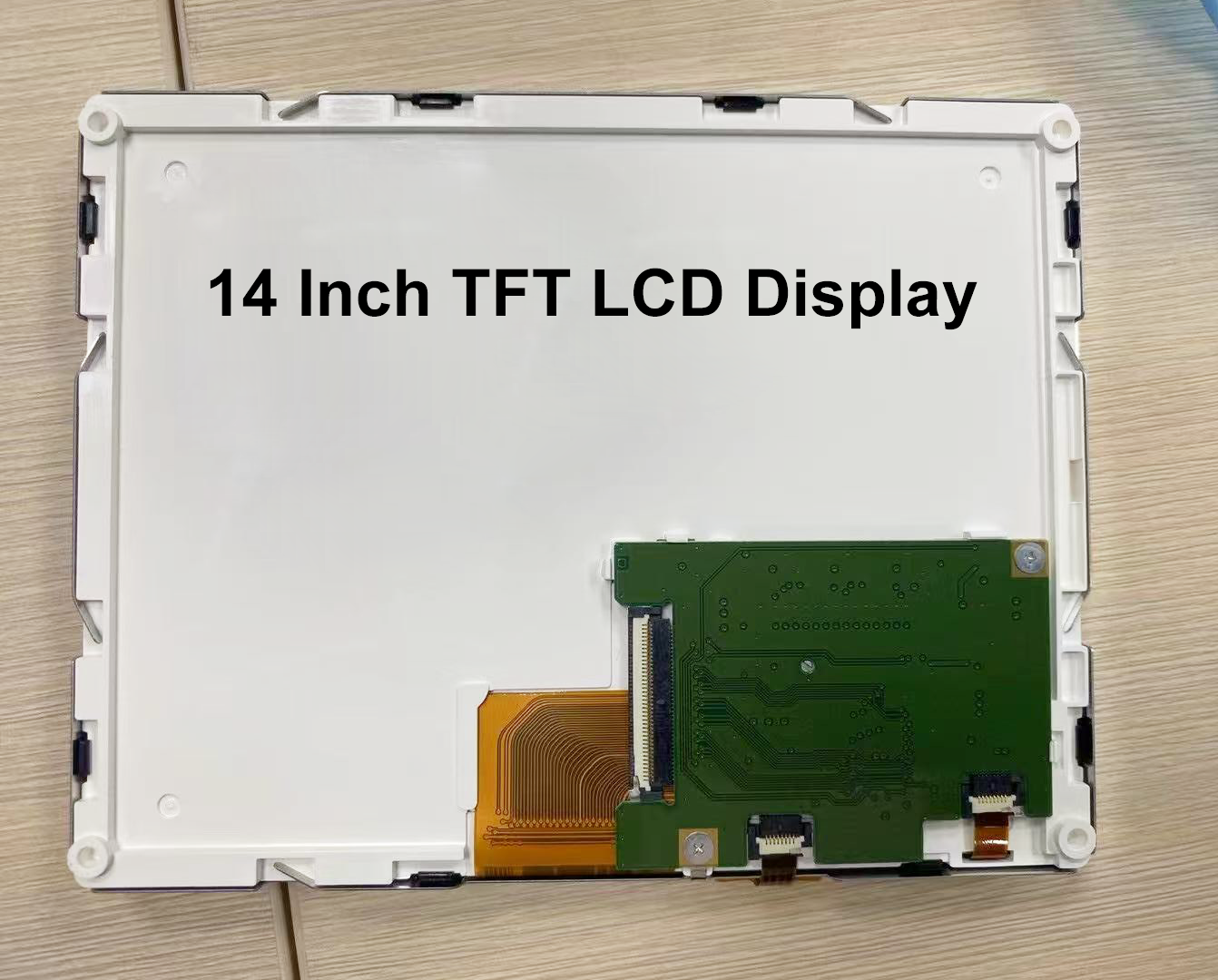

📐 High-Resolution 14 Inch WQXGA LTPS TFT LCD Display

The 14 inch WQXGA LTPS TFT LCD display (B1400AN03.2) from AUO delivers exceptional clarity, color accuracy, and slim mechanical design, making it an ideal solution for high-end embedded systems, medical equipment, and professional devices.

With a 2560 × 1600 resolution and 215 PPI, this panel offers ultra-sharp visuals and smooth image rendering even at close viewing distances.

🔍 Key Display Advantages

✔ Ultra-High Resolution & Pixel Density

• Resolution: 2560 (RGB) × 1600 (WQXGA)

• Pixel Density: 215 PPI

• Perfect for detailed UI, text-heavy interfaces, and high-precision visuals

✔ LTPS Technology for Premium Performance

• Panel Type: LTPS TFT-LCD

• Faster response and better uniformity compared to standard a-Si TFT

• Ideal for high-end and professional-grade applications

🌈 Color Accuracy & Viewing Experience

• Display Colors: 16.7M, 100% sRGB

• Contrast Ratio: 1200:1 (Typ.)

• Display Mode: AHVA, Normally Black, Transmissive

• Viewing Angle: 85° / 85° / 85° / 85° (CR ≥10)

• Best View Direction: Symmetry

Ensures consistent color and contrast from all directions.

🌞 High Brightness & Surface Treatment

• Brightness: 500 cd/m² (Typ.)

• Surface: Antiglare, Hard Coating (3H)

Provides excellent readability in bright environments while improving scratch resistance.

⚙️ Electrical & Interface Specifications

• Signal Interface: eDP (2 Lanes), eDP 1.4, HBR2 (5.4G/lane)

• Connector: 30 pins

• Input Voltage: 3.3V (Typ.)

• Frame Rate: 60Hz

Designed for stable high-speed data transmission in modern embedded platforms.

🧩 Ultra-Slim Mechanical Design

• Active Area: 301.594 × 188.496 mm

• Outline Size: 305.09 × 195.35 × 4.08 mm

• Shape Style: Slim design (PCBA bent, T ≤ 3.0 mm)

Perfect for compact devices where thickness and weight are critical.

🌡️ Reliability & Operating Environment

• Backlight: WLED with LED Driver

• Backlight Lifetime: 15,000 hours

• Operating Temperature: 0 ~ 50°C

• Storage Temperature: -20 ~ 60°C

Built for stable long-term operation in controlled industrial and commercial environments.

🏭 Typical Applications

• Medical equipment & diagnostic devices

• Portable industrial terminals

• Embedded computing systems

• High-end control panels

• Professional instruments

• Premium consumer & commercial devices

🔧 Customization & Engineering Support

We support:

✔ Touch integration (PCAP optional)
✔ Brightness & interface customization
✔ Mechanical & FPC adaptation
✔ Small-batch prototyping → mass production
