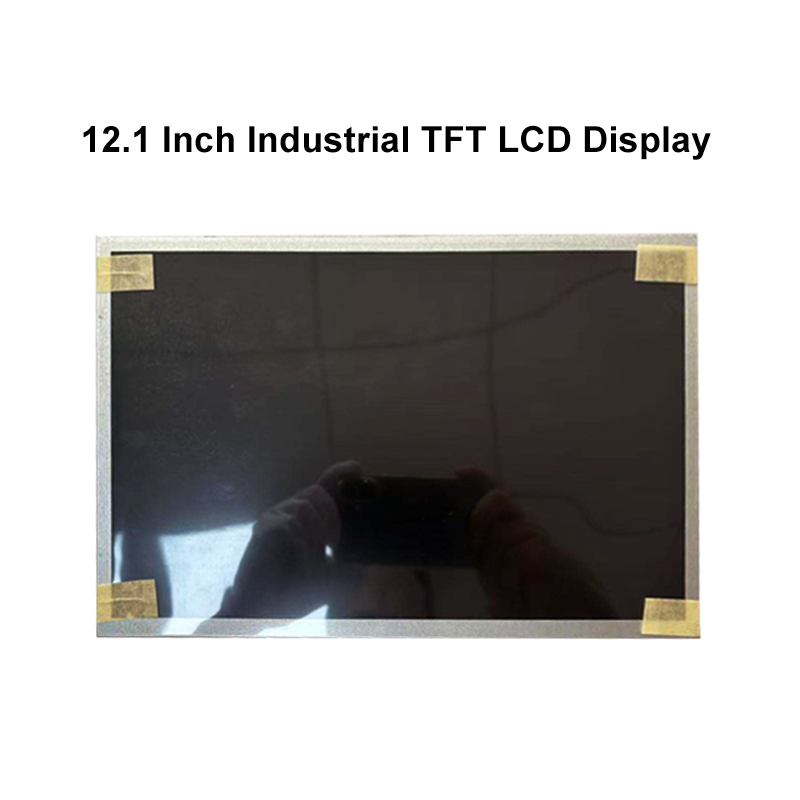

The 12.1 inch TFT LCD display (AUO G121EAN01.0) is an industrial-grade a-Si TFT-LCD module designed for demanding environments where reliability, clarity, and long service life are critical.

With a WXGA resolution of 1280×800 and 500 cd/m² typical brightness, this display ensures clear and sharp visibility even in bright ambient conditions. The AHVA wide viewing angle technology (89°/89°/89°/89°) delivers consistent image quality from any direction, making it suitable for control panels, medical equipment, and industrial HMIs.

This 12.1 inch TFT LCD display features an anti-glare surface with hard coating (3H), effectively reducing reflections and improving durability in industrial environments. Powered by a WLED backlight rated for up to 70,000 hours, it supports long-term continuous operation with minimal maintenance.

Designed for harsh conditions, the panel operates reliably across a wide temperature range from -30°C to +85°C, ensuring stable performance in outdoor, industrial, and medical applications. The LVDS interface (30 pins) allows easy integration into embedded systems and industrial controllers.

Whether you are developing industrial control systems, medical devices, or embedded displays, this 12.1 inch TFT LCD display offers proven stability, high visual performance, and long product lifecycle support.

• 12.1 Inch TFT LCD Display with WXGA (1280×800) resolution

• 500 nits brightness for clear visibility in bright environments

• AHVA wide viewing angle – consistent image from all directions

• Anti-glare + 3H hard coating for industrial durability

• Wide temperature support (-30°C to +85°C)

• LVDS interface (30 pins) for embedded & industrial systems

• 70,000-hour WLED backlight for long-term operation

• Industrial HMI & control panels

• Medical equipment & diagnostic devices

• Embedded systems & automation terminals

• Measurement instruments

• Industrial computers & kiosks
