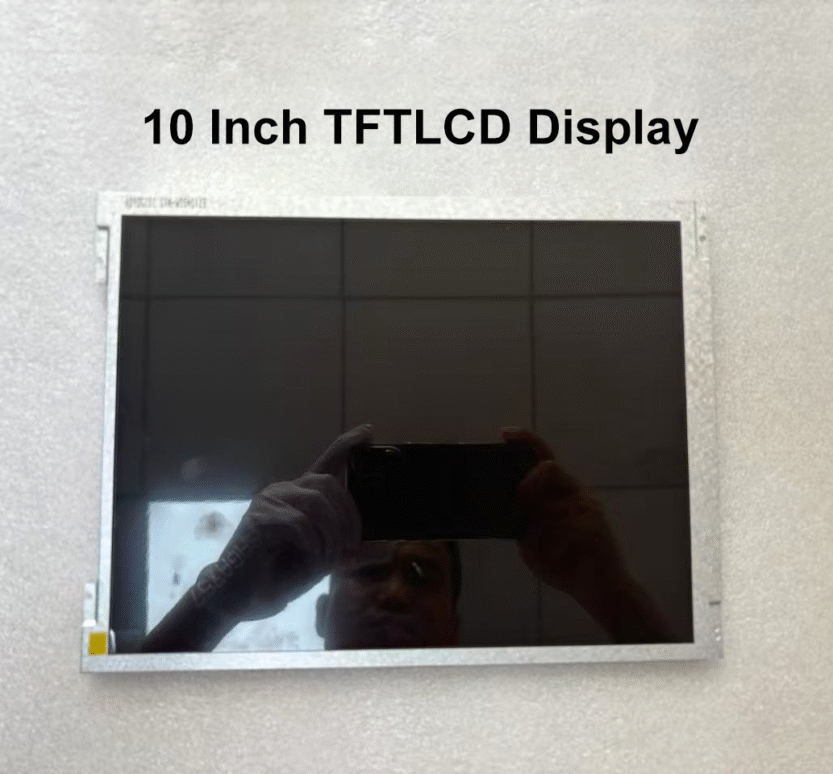

10.4 Inch TFT LCD Display for Industrial & Embedded Systems

This 10.4 inch TFT LCD display is built with an a-Si TFT-LCD TN panel, offering SVGA 800×600 resolution and stable performance for long-term industrial and embedded applications.

Designed with a normally white, transmissive TN mode, the display provides reliable visibility and consistent image quality in control panels, instrumentation, and automation systems. The 350 cd/m² typical brightness combined with anti-glare surface treatment (Haze 25%) ensures clear readability under indoor and semi-industrial lighting conditions.

The panel features an LVDS (1-channel, 6/8-bit) interface, enabling easy integration with a wide range of industrial controllers and embedded platforms. A 30,000-hour WLED backlight with LED driver supports continuous operation and long product lifecycles.

With an operating temperature range of –20°C to +70°C, this 10.4 inch TFT LCD display is suitable for demanding environments where stability, reliability, and long-term supply are critical.

Key Features

• 10.4 inch TFT LCD display with SVGA 800×600 resolution

• TN, normally white, transmissive display mode

• 350 cd/m² typical brightness

• Anti-glare surface (Haze 25%) for improved readability

• LVDS interface (1-channel, 6/8-bit, 20-pin connector)

• 30,000-hour WLED backlight with LED driver

• Operating temperature: –20°C to +70°C

• Lightweight design (300g max) for compact systems

Typical Applications

• Industrial control panels

• Automation equipment

• HMI systems

• Medical and diagnostic devices

• Measurement instruments

• Embedded industrial terminals

Mechanical & Electrical Overview

• Diagonal Size: 10.4 inch

• Active Area: 211.2 × 158.4 mm

• Outline Size: 236(W) × 176.9(H) × 5.9(D) mm

• Resolution: 800(RGB) × 600

• Brightness: 350 cd/m² (Typ.)

• Interface: LVDS (1 ch, 6/8-bit)

• Input Voltage: 3.3V (Typ.)

Custom brightness, interface, and mechanical support available for long-term industrial projects.
