🔍 Introduction
Responsiveness is a top priority in modern touch interfaces—whether in smartphones, industrial panels, or automotive infotainment systems. With OLED displays known for vivid visuals and LCDs dominating in industrial applications, many engineers and designers wonder: Are OLED touchscreens really more responsive than LCD ones?
In this article, we compare touch latency, refresh rate, touch layer integration, and real-world responsiveness between OLED and LCD touchscreen modules—especially from the perspective of long-term, high-demand B2B use.
📊 Quick Comparison: OLED vs LCD Touch Responsiveness
Attribute
OLED Touchscreen
LCD Touchscreen
Touch Latency
Very Low (1–10 ms typical)
Low to Moderate (10–25 ms typical)
Response Time (Display)
<1 ms
5–16 ms
Refresh Rate
60–120 Hz (some up to 240Hz)
60–75 Hz (typical)
Integration Type
In-cell or On-cell
Out-cell (add-on or bonded)
Power Consumption
Low with dark UI
Slightly higher due to backlight
Burn-in Risk
Yes (with static UI)
No
Industrial Suitability
Limited (sensitive to heat, static)
High (wide-temp, rugged)
Cost
High
Medium to Low
🔬 Touch Architecture: What Makes a Screen Feel “Fast”?
Touch responsiveness depends on more than just screen type:
Touch Latency: Total delay from finger input to visible response.
Sampling Rate: How many times per second the screen detects touch.
OLEDs often use in-cell or on-cell touch, making them faster and thinner.
LCDs usually use out-cell (external touch panels), slightly thicker but easier to customize.
💡 Key Point: In mobile or consumer use, OLEDs offer faster touch. But in industrial or rugged settings, LCDs hold up better long-term.

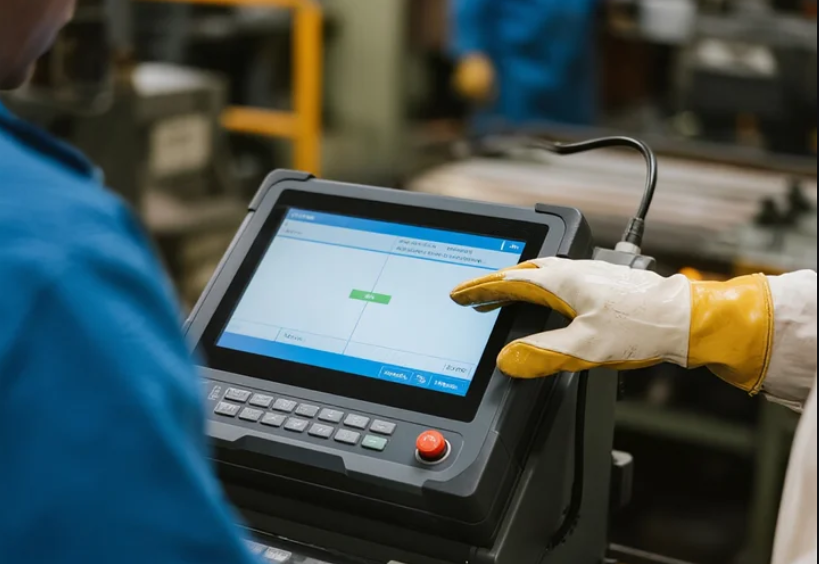

Industrial Touch Application
🏭 Application-Specific Use Cases
Use Case
Preferred Tech
Reasoning
Smartphones & Wearables
OLED
Thin profile, fast response, rich visuals
Industrial HMIs
LCD
Stable, wide temp, customizable interfaces
POS Terminals
LCD
Low-cost, reliable, and easy to integrate capacitive or resistive touch
EV Dashboards
IPS LCD or OLED
OLED for style, IPS for brightness and anti-glare
Medical Devices
LCD
Better for static UIs and long-duration use
⚙️ Real-World Testing & Responsiveness Benchmarks
Several studies show that OLEDs may offer 10–30% faster touch response than LCDs in short bursts. However, the perceived difference for users is often negligible beyond 60Hz.
📊 A/B Testing Results:
OLED (In-cell): 6–8 ms average latency
IPS LCD (Add-on capacitive): 12–18 ms average latency
Resistive LCD: 25–35 ms (less for gloved or stylus input)
🔍 For most industrial applications, differences are less about speed and more about environment fit.

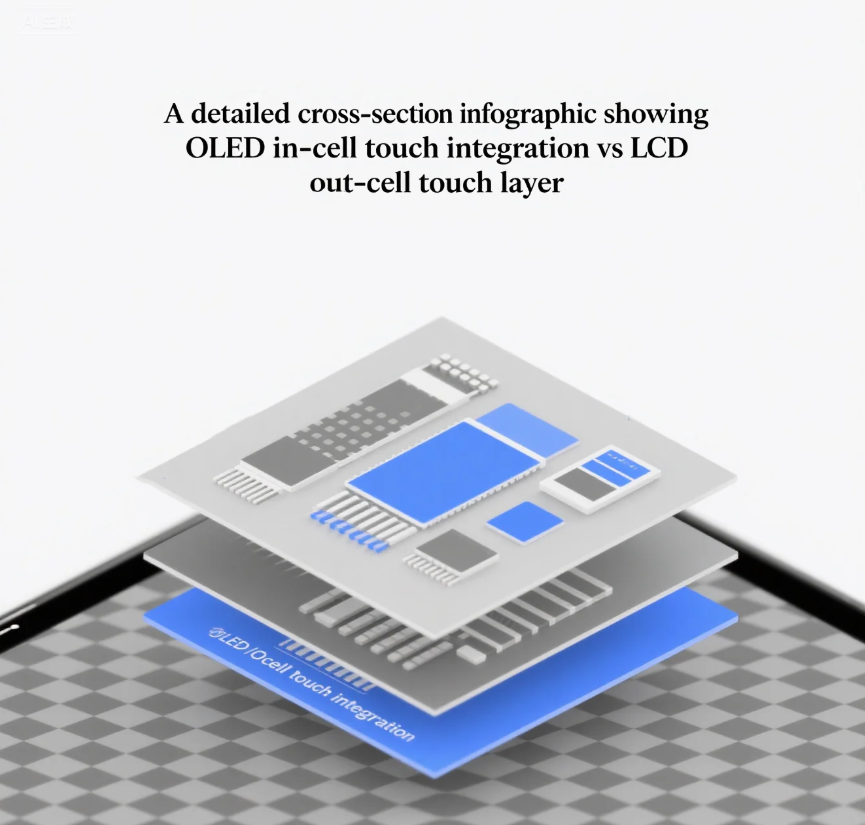

OLED vs LCD Touch Speed Test
💰 Cost vs. Performance Trade-Off
Factor
OLED Touch Module
LCD Touch Module
Module Cost
$30–60+
$12–30
Customization Flexibility
Low
High
Lead Time
Longer
Shorter
Temperature Range
–10°C to +50°C (typical)
–30°C to +85°C
Durability
Sensitive to moisture/heat
Rugged, impact resistant
✅ Key Takeaways
OLEDs are more responsive in fast, light-use scenarios—great for premium mobile UX.
LCDs are more stable and rugged for industrial, medical, and outdoor use.
Touch latency matters, but so do temperature, lifetime, and cost.
FlyLucky offers TFT LCD modules (with IPS/TN) and supports capacitive and resistive touch integration, optical bonding, and wide-temp support for rugged B2B solutions.
❓ FAQ
Q: Can OLED burn-in affect touch response? A: No, but it may affect perceived image quality in UI over time.
Q: Do you support glove-touch LCD modules? A: Yes, FlyLucky supports glove, stylus, and water-touch options for industrial use.
Q: Which is better for outdoor use? A: IPS LCD with anti-glare and high brightness outperforms OLED in direct sunlight.
